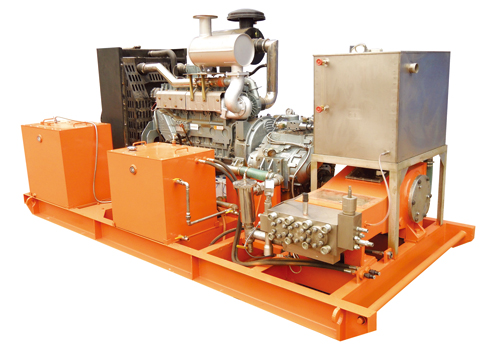

High Pressure Cleaning Machines S160
S160 fixed type high pressure cleaning machine is the product developed by our company can be the super high pressure cleaning machine. The cleaning machine can be equipped with all kinds of motor and diesel engine according to the customer request. Is suitable for the size of caliber pipeline cleaning, heat exchanger, condenser ships, chemical cleaning, washing, cleaning, buildings, and other artifacts the oil field.
This product the power end of transmission () between the crankshaft and connecting rod bearing type. Lubrication method USES the splash lubrication, because the motor power is larger, power side with water interlayer cooling oil temperature, stuffing box also used water cooling. Cooling water and the water pipe connection to ensure that the cooling effect, this method can be 24 hours of continuous operation. This product the hydraulic end is equipped with safety valve, throttle valve, its own system, adjustable throttle valve to adapt to the different traffic demand.
This product has the following features:
1. Using a single gun, gun, differential pressure range is small.
2. Use as type spray gun using foot safe, convenient, can guarantee the working clearance reciprocating pump in a state of low pressure (no load).
Performance Parameter List
|
M3/h |
L/min |
Rated Discharge Pressure （Mpa） |
Plunger Diameter （mm） |
|
3 |
50 |
160 |
Φ25 |
|
5.5 |
93 |
90 |
Φ34 |
Note: above parameters are theoretical data when the medium proportion is 1.0.
